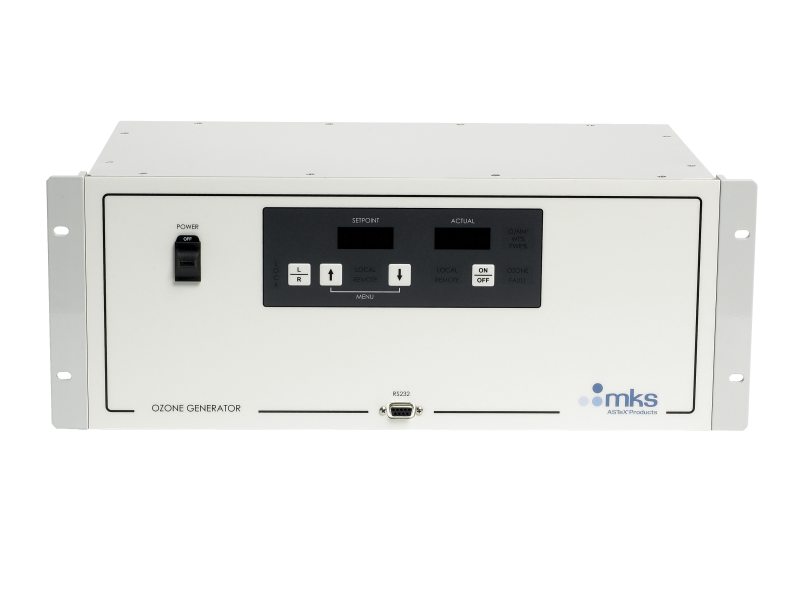

SEMOZON® AX8407C Compact Ozone Generator

Model: AX8407C

SEMOZON® AX8407C is a compact ozone generator capable of high concentrations of ultraclean ozone at relatively low flow.

Type
Ozone Gas Generator
Ozone Output
27.5 - 105 g/hr, dependent on model
Flow Rate
0.5 - 10 slm
Feed Gas
Oxygen: Grade 6 or better O2, Nitrogen: 50 - 100 ppm grade 5 or better N2
Nominal Cell Pressure (Delivery)
10 - 45 psig (0.7 - 3.1 bargauge)
Control Interface
Front Panel Control and Remote Operation
Cooling Water Temperature
17 - 23°C (63 - 73°F)
Cooling Water Filtration
20 microns
Cooling Water Quality
Resistivity ≥50 KΩ/cm

Voltage Requirements
230 VAC (±10%)
Phase
3Ø
Current Requirements
1.2 - 4.7 Amps
Frequency
50/60 Hz
Weight
32 - 44 lb, depending on model
Dimensions
259 x 431 x 176 (10.19 x 17 x 6.92 inches) (width x depth x height)
Compliance
CE mark, NRTL tested to UL and CSA standards

Type
Ozone Gas Generator
Ozone Output
27.5 - 105 g/hr, dependent on model
Flow Rate
0.5 - 10 slm
Feed Gas
Oxygen: Grade 6 or better O2, Nitrogen: 50 - 100 ppm grade 5 or better N2
Nominal Cell Pressure (Delivery)
10 - 45 psig (0.7 - 3.1 bargauge)
Control Interface
Front Panel Control and Remote Operation
Cooling Water Temperature
17 - 23°C (63 - 73°F)
Cooling Water Filtration
20 microns
Cooling Water Quality
Resistivity ≥50 KΩ/cm

Voltage Requirements
230 VAC (±10%)
Phase
3Ø
Current Requirements
1.2 - 4.7 Amps
Frequency
50/60 Hz
Weight
32 - 44 lb, depending on model
Dimensions
259 x 431 x 176 (10.19 x 17 x 6.92 inches) (width x depth x height)
Compliance
CE mark, NRTL tested to UL and CSA standards
