Sorry, this product is no longer offered for sale.

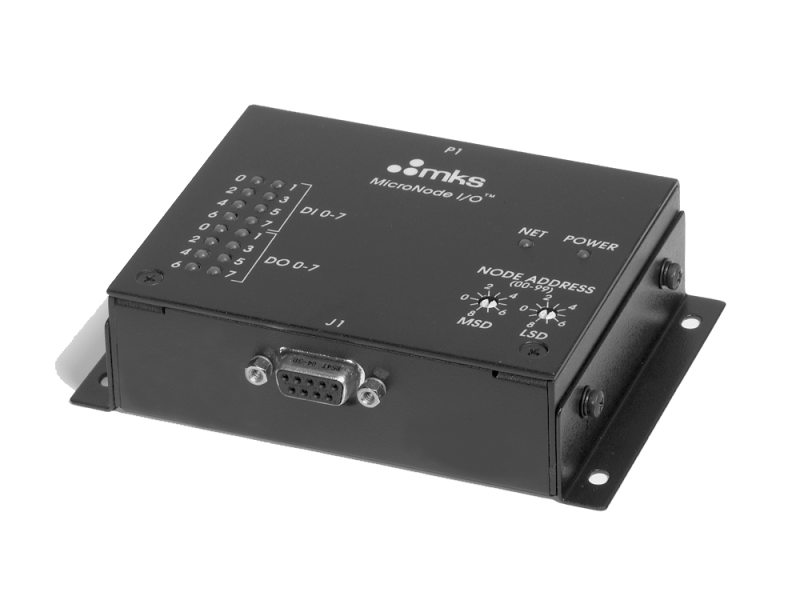

MicroNode™ Compact Networked I/O

Model: AS00160-02

MicroNode™ Compact Networked I/O

Model: AS00160-02

MicroNode networked I/O for Profibus-based fieldbus networks

Technical Specs

  • Type
    Networked I/O and Controller
  • Bus
    cPCI
  • Communication
    Profibus
  • Power Requirements
    24 VDC, 120 mA (AIO Power: Internal ±15 VDC, 50 mA)
  • Slot 1
    Combo IO
  • Front Panel Indicators
    Network/Module: DeviceNet bi-color (red/green) status LEDs, Digital I/O: Green status LEDs, Rotary Switch: Node Address, Baud Rate (DeviceNet only)
  • Operating Temperature
    0 - 55°C
  • Storage Temperature
    -40 - 85°C
  • Humidity
    5 - 95% non-condensing
  • Weight
    200 g (0.44 lb)
  • Dimensions
    3.150 x 4.724 x 1.142 in. (80 x 120 x 29 mm)

Technical Specs

  • Type
    Networked I/O and Controller
  • Bus
    cPCI
  • Communication
    Profibus
  • Power Requirements
    24 VDC, 120 mA (AIO Power: Internal ±15 VDC, 50 mA)
  • Slot 1
    Combo IO
  • Front Panel Indicators
    Network/Module: DeviceNet bi-color (red/green) status LEDs, Digital I/O: Green status LEDs, Rotary Switch: Node Address, Baud Rate (DeviceNet only)
  • Operating Temperature
    0 - 55°C
  • Storage Temperature
    -40 - 85°C
  • Humidity
    5 - 95% non-condensing
  • Weight
    200 g (0.44 lb)
  • Dimensions
    3.150 x 4.724 x 1.142 in. (80 x 120 x 29 mm)
