AA08A Micro-Baratron® High Pressure Flow-through Pressure Transducers
Model: AA08A13PCH3GW1
AA08A Micro-Baratron® High Pressure Flow-through Pressure Transducers
Model: AA08A13PCH3GW1
Overview
Overview

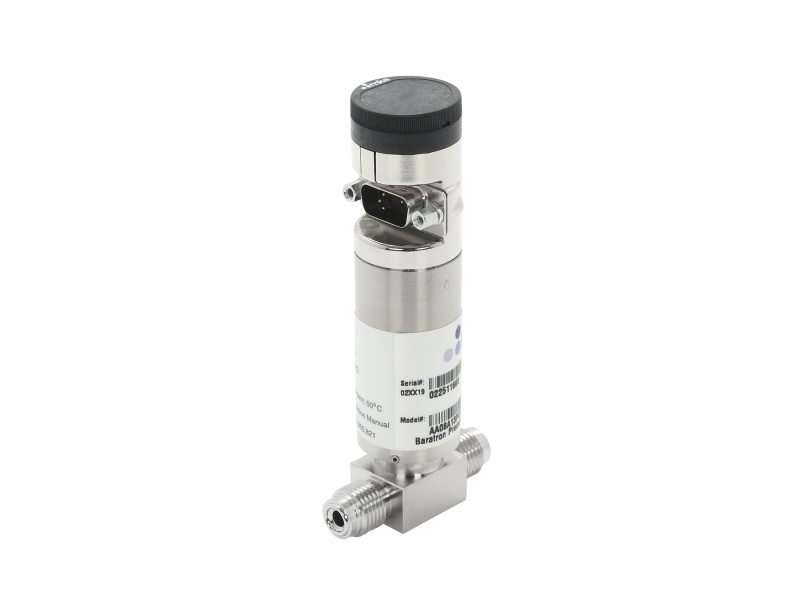

The AA08A13PCH3GW1 Micro-Baratron® High Pressure, Ultraclean, Flow-through Pressure Transducer offers a Full Scale measurement range of 1000 psia with 4 VCR® male fittings on both ends (2.24 inch face-face), 0-5 VDC analog output, and 15-pin high-density Type "D" connector on a 9" flying lead in a standard enclosure. It is ideally suited for use in delivery systems that feed ultrapure gases to critical process systems.
Technical Specs
- TypePressure Transducer
- ConfigurationFlow-through
- Measurement TypeAbsolute
- Full Scale Pressure1000 psia
- Accuracy1.0% of Reading
- Analog Output0-5 VDC
- Fitting Type4 VCR male, nonrotatable
- Face to Face Length2.24 in.
- Electrical Connector15-pin high density type D
- Zero Temperature Coefficient0.02% of Full Scale/°C
- Span Temperature Coefficient0.04% of Reading/°C
- Overpressure Limit1,500 psia
- Burst Pressure10,000 psia
- Wetted SurfacesIncoloy®
- Surface Finish<5 µin Ra
- EnclosureStandard
- Power Requirements13 - 32 VDC
- Operating Temperature Range0 - 50°C (32 - 122°F)
- DisplayLDM-C (with Blank Cover)
- ComplianceCE
Technical Specs
- TypePressure Transducer
- ConfigurationFlow-through
- Measurement TypeAbsolute
- Full Scale Pressure1000 psia
- Accuracy1.0% of Reading
- Analog Output0-5 VDC
- Fitting Type4 VCR male, nonrotatable
- Face to Face Length2.24 in.
- Electrical Connector15-pin high density type D
- Zero Temperature Coefficient0.02% of Full Scale/°C
- Span Temperature Coefficient0.04% of Reading/°C
- Overpressure Limit1,500 psia
- Burst Pressure10,000 psia
- Wetted SurfacesIncoloy®
- Surface Finish<5 µin Ra
- EnclosureStandard
- Power Requirements13 - 32 VDC
- Operating Temperature Range0 - 50°C (32 - 122°F)
- DisplayLDM-C (with Blank Cover)
- ComplianceCE
Resources & Downloads
Drawings & CADs
AA07 & AA08 Baratron® Pressure Transducer Dimensional Drawing(1,009.5 kB, PDF)
