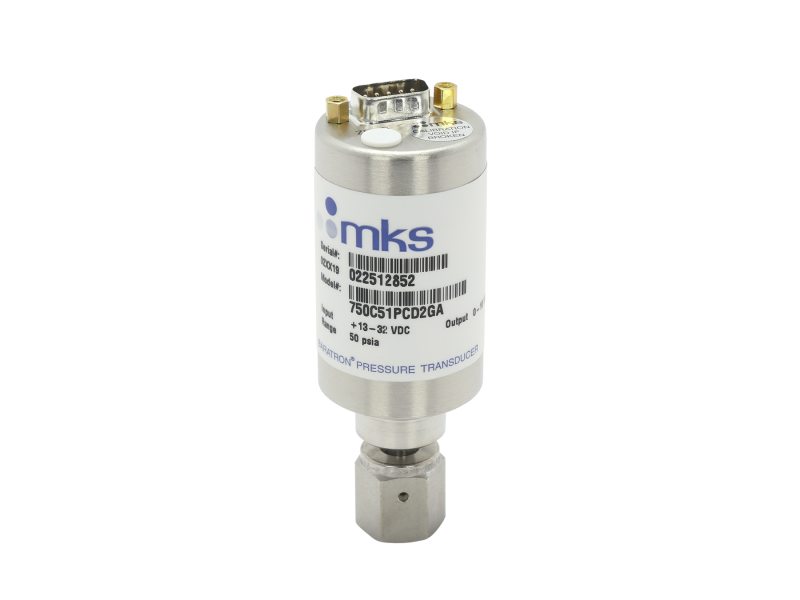

Absolute Pressure Transducer, 50 psia, 4 VCR Female, 0-10 VDC, DB9

Technical Specs

  • Type
    Vacuum/pressure Transducer
  • Measurement Type
    Absolute
  • Full Scale Range
    50 psia
  • Sensor Temperature
    Ambient
  • Fitting Type
    4 VCR female
  • Accuracy
    1.0% of Reading
  • Resolution
    0.01% of Full Scale
  • Repeatability
    ±0.1% of Reading
  • Analog Output
    0-10 VDC
  • Electrical Connector
    9-pin D-sub male
  • Zero Temperature Coefficient
    0.02% of Full Scale/°C
  • Span Temperature Coefficient
    0.04% of Reading/°C
  • Operating Temperature Range
    0-50°C
  • Exposed Materials
    Inconel and 316L stainless steel
  • Volume
    4.9 cc
  • Overpressure Limit
    100 psia
  • Burst Pressure
    500 psia
  • Power Requirements
    13-32 VDC
  • Response Time
    <20 msec
  • Weight
    0.5 lbs (0.2 kg)
  • Compliance
    CE
