690A Baratron® 0.1-25000 Torr 45°C Heated Reference Absolute Capacitance Manometers
Model: 690A.1TRB
690A Baratron® 0.1-25000 Torr 45°C Heated Reference Absolute Capacitance Manometers
Model: 690A.1TRB
Overview
Overview

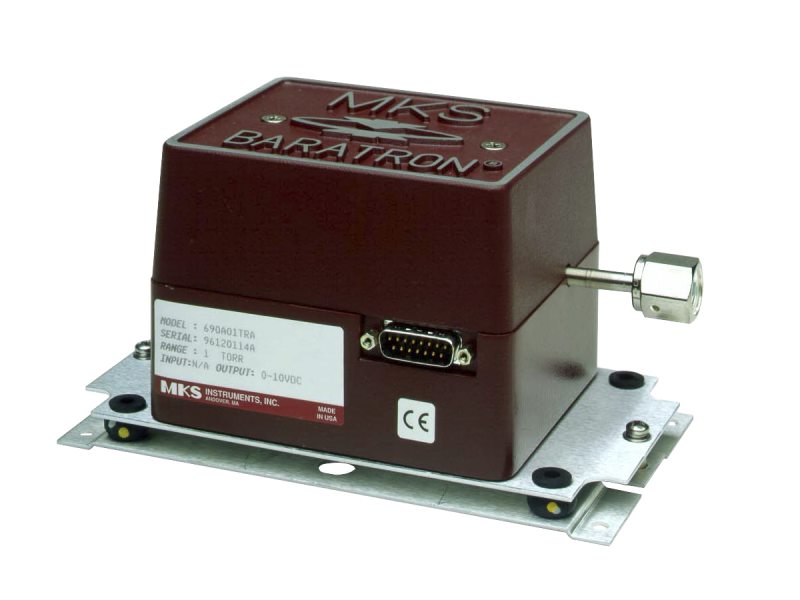

The 690A.1TRB Baratron® Heated, High Accuracy Absolute Capacitance Manometer operates at an internal controlled temperature of 45°C. It features 0.1 Torr full scale pressure measurement and a Swagelok® 4 VCR® female fitting.
Technical Specs
- TypeVacuum Pressure Transducer
- Sensor TypeReference Capacitance Manometer
- Measurement TypeAbsolute
- Sensor Temperature45°C
- Full Scale Range0.1 Torr
- Fitting Type4 VCR female
- Accuracy0.08% of Reading
- Resolution1x10-6 of Full Scale
- Zero Temperature Coefficient<30 PPM, Full Scale/°C
- Span Temperature Coefficient<0.010% of Reading/°C (100 ppm)
- Exposed MaterialsInconel® and 304 stainless steel
- Volume2.5 cc
- Px Overpressure40 psia
- Time Constant with Signal ConditionerFast Position: > 25 ms, Standard Position: 40 ms, Slow Position: 400 ms
- Useable Resolution5 decades
Technical Specs
- TypeVacuum Pressure Transducer
- Sensor TypeReference Capacitance Manometer
- Measurement TypeAbsolute
- Sensor Temperature45°C
- Full Scale Range0.1 Torr
- Fitting Type4 VCR female
- Accuracy0.08% of Reading
- Resolution1x10-6 of Full Scale
- Zero Temperature Coefficient<30 PPM, Full Scale/°C
- Span Temperature Coefficient<0.010% of Reading/°C (100 ppm)
- Exposed MaterialsInconel® and 304 stainless steel
- Volume2.5 cc
- Px Overpressure40 psia
- Time Constant with Signal ConditionerFast Position: > 25 ms, Standard Position: 40 ms, Slow Position: 400 ms
- Useable Resolution5 decades
Resources & Downloads
Drawings & CADs
690A Baratron® Capacitance Manometer Dimensional Drawing(92.6 kB, PDF)
