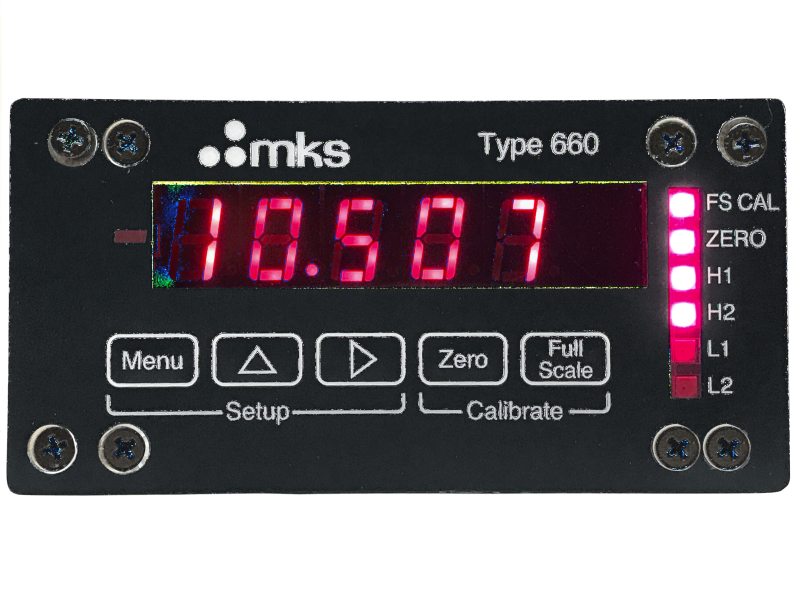

660C Single-channel Digital Power Supply and Readout
Model: 660C32
660C Single-channel Digital Power Supply and Readout
Model: 660C32
Overview
Overview
The 660C32 Single-channel Digital Power Supply and Readout is a microprocessor-based power supply and readout module for use with capacitance manometers and mass flow meters requiring ±15 VDC and 250 mA maximum power, and any output signal in the range of 0-10 VDC. The front panel's menu-selectable, input scaler, and Full Scale calibration functions allow for direct reading with any capacitance manometer range or engineering units, and compensation for gas correction factors when used with mass flow meters. Sensor zero is provided via the front panel membrane switch, and remotely via TTL signals. It required 100 VAC input power.
Technical Specs
- TypePower Supply and Readout
- Display4.5 digit LED
- Channels1
- Power Requirements100 VAC
- Input Signal±10 VDC
- Output Power±15 VDC ±5% @ 0.25 Amps max.
- Output SignalPressure and alarm status, and provides setup Input of alarm trip points, hysteresis, and display zero
- InterfaceRS232
- Communication ProtocolRS232
- Trip Points4 open collector transistors (2 high, 2 low) with adjustable hysteresis and status LEDs, adjustable from 1 to 100%
- Trip Point Relay RatingsOpen collector transistors rated for 50 Volts/100 mA max.
- Use622, 623, 624, 626, 627, 223, 722, 740, 750, 850, 852, 870, 872 manometers, Display only for 120, 220, 619, 621, 631 manometers, 358, 558, 179 mass flow meters
- Operating Temperature0 - 55°C
- Mounting0.125 in. DIN enclosure, 96 x 48 x 140 mm, case mounts in 92 x 45 panel cutout
- ComplianceCE
