  5. 623F 1-1000 Torr, Unheated Absolute Baratron® Capacitance Manometers with Trip Points

Sorry, this product is no longer offered for sale. The recommended replacement product is 623h-absolute-capacitance-manometers.

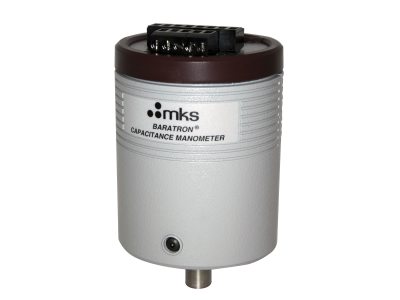

623F 1-1000 Torr, Unheated Absolute Baratron® Capacitance Manometers with Trip Points

Model: 623f-absolute-capacitance-manometers

623F 1-1000 Torr, Unheated Absolute Baratron® Capacitance Manometers with Trip Points

Model: 623f-absolute-capacitance-manometers

623f 1-1000 torr, unheated absolute baratron capacitance manometer with trip points

Technical Specs

  • Type
    Pressure Transducer
  • Sensor Type
    Capacitance Manometer
  • Measurement Type
    Absolute
  • Full Scale Range
    10, 20, 100, 500, and 1000 Torr
  • Sensor Temperature
    Ambient
  • Analog Output
    0 - 10 VDC into >10kΩ load
  • Accuracy
    0.25% of Reading
  • Electrical Connector
    5-pin Terminal Block
  • Zero Temperature Coefficient
    0.005% of Full Scale/°C
  • Span Temperature Coefficient
    0.04% of Reading/°C
  • Operating Temperature Range
    0° to 50°C
  • Resolution
    0.001% of Full Scale
  • Volume
    6.3 cc
  • Overpressure Limit
    45 psia (310 kPa)
  • Materials Exposed to Process Gases
    Incoloy® and Inconel®
  • Warm-up Time
    30 minutes
  • Trip Points
    2
  • Output Relays
    SPDT, 1 Amp @ 30 VDC or 0.5 Amp @ 30 VAC resistive
  • Power Requirements
    ± 15 VDC ±5% @ 75 mA
  • Compliance
    Fully compliant to EMC Directive 2014/30/EU
    Fully compliant to RoHS Directive 2011/65/EU

Technical Specs

  • Type
    Pressure Transducer
  • Sensor Type
    Capacitance Manometer
  • Measurement Type
    Absolute
  • Full Scale Range
    10, 20, 100, 500, and 1000 Torr
  • Sensor Temperature
    Ambient
  • Analog Output
    0 - 10 VDC into >10kΩ load
  • Accuracy
    0.25% of Reading
  • Electrical Connector
    5-pin Terminal Block
  • Zero Temperature Coefficient
    0.005% of Full Scale/°C
  • Span Temperature Coefficient
    0.04% of Reading/°C
  • Operating Temperature Range
    0° to 50°C
  • Resolution
    0.001% of Full Scale
  • Volume
    6.3 cc
  • Overpressure Limit
    45 psia (310 kPa)
  • Materials Exposed to Process Gases
    Incoloy® and Inconel®
  • Warm-up Time
    30 minutes
  • Trip Points
    2
  • Output Relays
    SPDT, 1 Amp @ 30 VDC or 0.5 Amp @ 30 VAC resistive
  • Power Requirements
    ± 15 VDC ±5% @ 75 mA
  • Compliance
    Fully compliant to EMC Directive 2014/30/EU
    Fully compliant to RoHS Directive 2011/65/EU
