Sorry, this product is no longer offered for sale. The recommended replacement product is 90-elbow-polyimide-heater-120v.

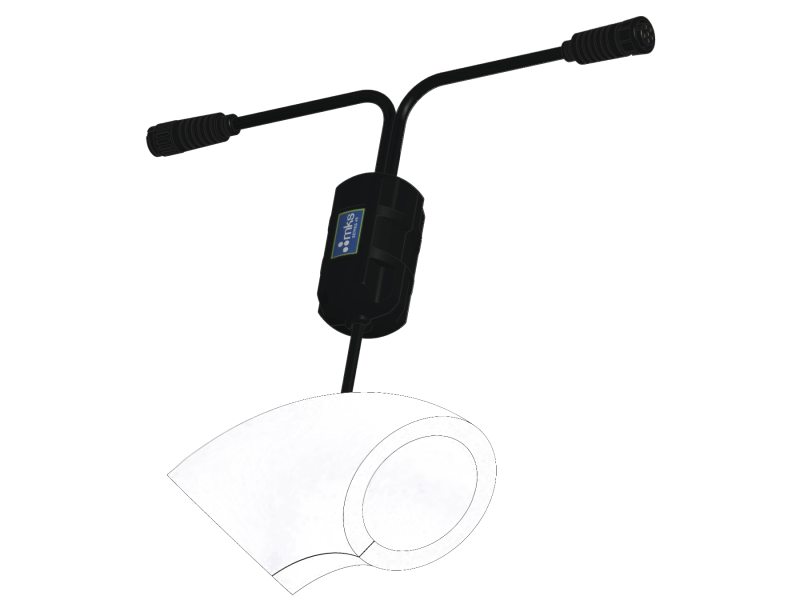

Legacy Series 49 Component Heaters
Model: 491040-1063
Legacy Series 49 Component Heaters
Model: 491040-1063
Overview
Overview
This product is no longer available. Please see the new Series 49UL Heaters for our current selection.
Technical Specs
- SeriesSeries 49
- TypeHeater Jacket
- Insulation MaterialPTFE Teflon-Woven
- Component Type90 Degree Elbow
- Tube OD4.0 in.
- Flange TypeISO-MF
- For Use With100764610
- Temperature Range35 - 200°C
- Voltage Requirements100-120 VAC
- Current Requirements0.43 Amps
- Modulus5.25 in. (133 mm)
- Bend Radius6.00 in. (152 mm)
Technical Specs
- SeriesSeries 49
- TypeHeater Jacket
- Insulation MaterialPTFE Teflon-Woven
- Component Type90 Degree Elbow
- Tube OD4.0 in.
- Flange TypeISO-MF
- For Use With100764610
- Temperature Range35 - 200°C
- Voltage Requirements100-120 VAC
- Current Requirements0.43 Amps
- Modulus5.25 in. (133 mm)
- Bend Radius6.00 in. (152 mm)
