Sorry, this product is no longer offered for sale. The recommended replacement product is 90-elbow-polyimide-heater-120v.

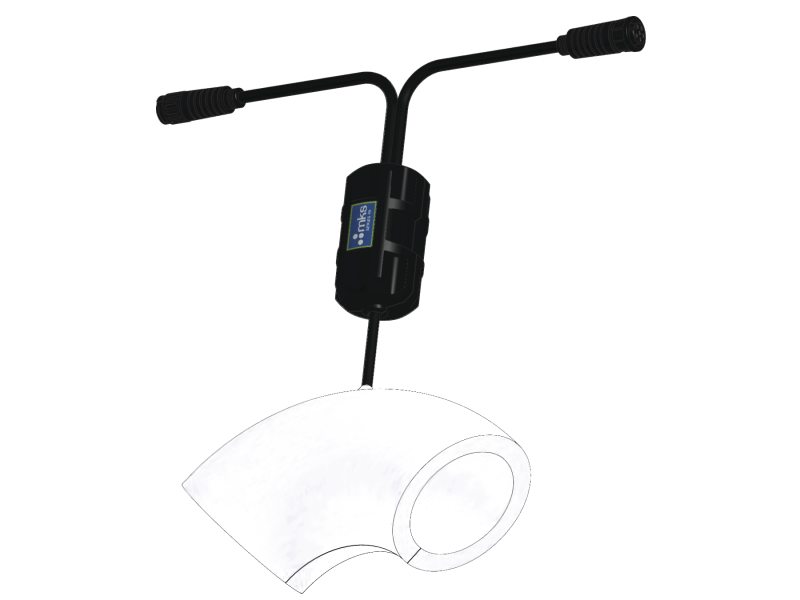

Legacy Series 49 Component Heaters
Model: 491020-1066
Legacy Series 49 Component Heaters
Model: 491020-1066
Overview
Overview
This product is no longer available. Please see the new Series 49UL Heaters for our current selection.
Technical Specs
- SeriesSeries 49
- TypeHeater Jacket
- Insulation MaterialPTFE Teflon-Woven
- Component Type90 Degree Elbow
- Tube OD2.0 in.
- Flange TypeButtweld
- For Use With1002390200
- Temperature Range35 - 200°C
- Voltage Requirements100-120 VAC
- Current Requirements0.52 Amps
- Modulus3.0 in. (76 mm)
- Bend Radius3.0 in. (76 mm)
Technical Specs
- SeriesSeries 49
- TypeHeater Jacket
- Insulation MaterialPTFE Teflon-Woven
- Component Type90 Degree Elbow
- Tube OD2.0 in.
- Flange TypeButtweld
- For Use With1002390200
- Temperature Range35 - 200°C
- Voltage Requirements100-120 VAC
- Current Requirements0.52 Amps
- Modulus3.0 in. (76 mm)
- Bend Radius3.0 in. (76 mm)
