Sorry, this product is no longer offered for sale.

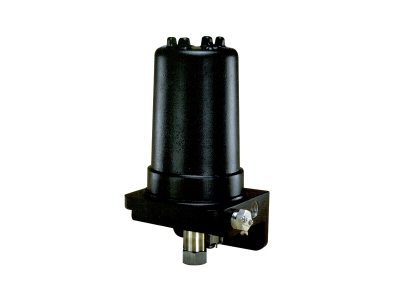

430E 1-25,000 Torr Baratron® NEMA4 Absolute Pressure Transmitters

Model: 430e-absolute-pressure-transmitters

Type
NEMA 4 Pressure Transmitter
Sensor Type
Industrial Capacitance Manometer
Measurement Type
Absolute
Full Scale Pressure Ranges
1, 2, 10, 100, and 1000 Torr; 100, 200, 300, 400, and 500 psia
Fitting Type
¼ inch NPT
Accuracy
±0.50% of Reading
Analog Output
Two-wire 4-20 mA
Analog Connector
½ inch conduit with screw terminals
Zero Temperature Coefficient
0.020% Full Scale/°C
Span Temperature Coefficient
0.040% Reading/°C
Volume
7.0 cc

Overpressure Limit
120% of FS, or 35 psia (240 kPa) - whichever is greater
Power Requirements
24 to 32 VDC
Response Time
With snubber: 250 msec
Without snubber: 20 msec
Mounting Position
Panel mount or pipe mount with U-bolt, process connection down
Zero Adjustment
Continuously adjustable externally
Housing Materials
356-T6 aluminum with 2-part polyurethane paint
Enclosure Rating
NEMA4
Weight
6 lbs (3 kg)
Compliance
Compliant to EMC Directive 2014/30/EU when used with an overall metal braided shielded cable, properly grounded at both ends. Explosion-proof: Class 1, Divisions 1 & 2, Groups C & D. Dust Ignition-Proof: Class II, Divisions 1 & 2, Groups E, F, & G. For use in: Class III, Divisions 1 & 2, NEMA 4 Enclosure

Type
NEMA 4 Pressure Transmitter
Sensor Type
Industrial Capacitance Manometer
Measurement Type
Absolute
Full Scale Pressure Ranges
1, 2, 10, 100, and 1000 Torr; 100, 200, 300, 400, and 500 psia
Fitting Type
¼ inch NPT
Accuracy
±0.50% of Reading
Analog Output
Two-wire 4-20 mA
Analog Connector
½ inch conduit with screw terminals
Zero Temperature Coefficient
0.020% Full Scale/°C
Span Temperature Coefficient
0.040% Reading/°C
Volume
7.0 cc

Overpressure Limit
120% of FS, or 35 psia (240 kPa) - whichever is greater
Power Requirements
24 to 32 VDC
Response Time
With snubber: 250 msec
Without snubber: 20 msec
Mounting Position
Panel mount or pipe mount with U-bolt, process connection down
Zero Adjustment
Continuously adjustable externally
Housing Materials
356-T6 aluminum with 2-part polyurethane paint
Enclosure Rating
NEMA4
Weight
6 lbs (3 kg)
Compliance
Compliant to EMC Directive 2014/30/EU when used with an overall metal braided shielded cable, properly grounded at both ends. Explosion-proof: Class 1, Divisions 1 & 2, Groups C & D. Dust Ignition-Proof: Class II, Divisions 1 & 2, Groups E, F, & G. For use in: Class III, Divisions 1 & 2, NEMA 4 Enclosure

Contact an Applications Specialist by sending us an email
