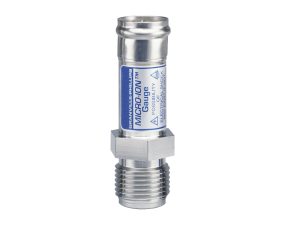

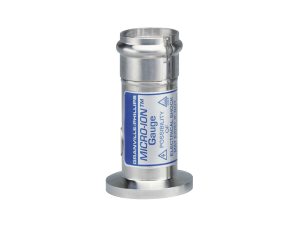

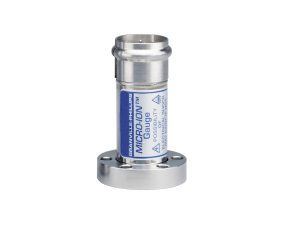

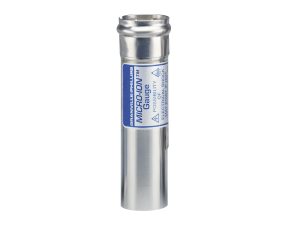

355 Micro-Ion® Bayard-Alpert Vacuum Sensors
Model: 355-micro-ion-bayard-alpert-vacuum-gauges
355 Micro-Ion® Bayard-Alpert Vacuum Sensors
Model: 355-micro-ion-bayard-alpert-vacuum-gauges
Technical Specs
Sensor Type
Micro-Ion Ionization Gauge
Measurement Range
5x10-10 to 5x10-2 Torr
6x10-10 to 7x10-2 mbar
6x10-8 to 7 Pa
Filament
Yttria-coated iridium or tungsten
Exposed Materials
304 stainless steel, alumina, tantalum, tungsten, CuAg eutectic, Kovar®
Bake Out Temperature
200°C maximum, non-operating, cable disconnected
Internal Volume
10.8 cc to port screen
Weight
113 g (4 oz) with NW16KF fitting
Sensitivity for N2
20/Torr, 15/mbar, 0.15/Pa
X-ray Limit
< 3x10-10 Torr, < 4 x10-10 mbar, < 4x10-8 Pa
