Mass Flow Controller, 50 sccm, 4 VCR Male, 0-5 VDC, DB15, Viton Seal
Model: 1179C01351CR1BV
Mass Flow Controller, 50 sccm, 4 VCR Male, 0-5 VDC, DB15, Viton Seal
Mass Flow Controller, 50 sccm, 4 VCR Male, 0-5 VDC, DB15, Viton Seal
Model: 1179C01351CR1BV
Overview
Overview

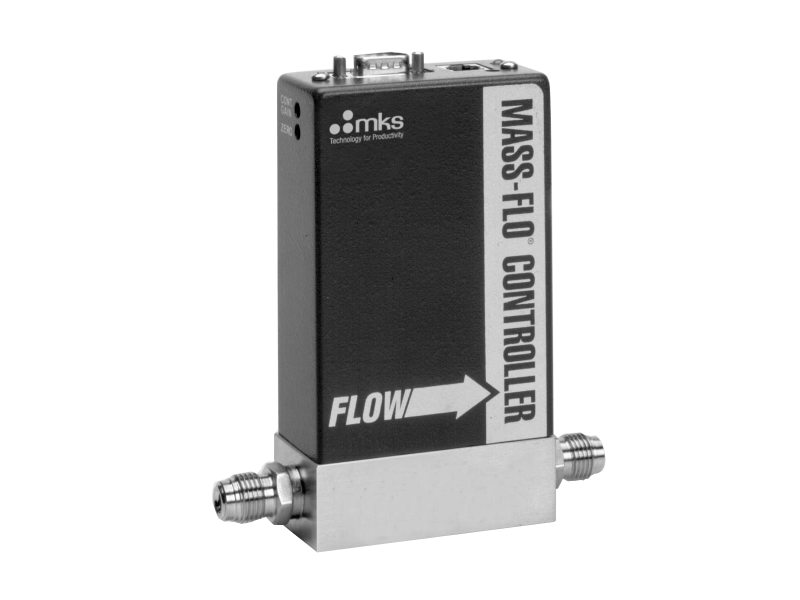

The 1179C01351CR1BV is a general purpose mass flow controller with an Viton seal, rated for 50 sccm Full Scale (N2), with 4 VCR male fittings, and a 15-pin D-sub electrical connector. It is designed to measure and control the flow of gases in a wide variety of applications. 1179 Mass-Flo® controllers can also be used as a pressure controller when connected to a suitable pressure transducer. The 1179C is compatible with MFC power supply and display electronics from MKS or other manufacturers.
Technical Specs
-
TypeMass Flow Controller
-
Calibration GasN2Â (or equivalent)
-
Control Range0.1 - 50 sccm
-
Full Scale Flow Range50 sccm
-
Fitting Type4 VCR male
-
Flow Input Output Signal0 - 5 VDC
-
Analog I/O Connector15-pin D-sub
-
Seal MaterialViton
-
Maximum Inlet Pressure150 psig
-
Normal Operating Pressure Differential10 - 40 psid (with atmospheric pressure at the MFC outlet)
-
Typical Accuracy±1.0% of Full Scale (including non - linearity, hysteresis, and non - repeatability referenced to 760 mmHg and 0°C)
-
Repeatability<0.05% of Full Scale/°C
-
Resolution<0.08% of Reading/°C
-
Zero Temperature Coefficient<0.05% of Full Scale/°C
-
Span Temperature Coefficient<0.08% of Reading/°C
-
Warm-up Time<2 min (to within 0.2% of Full Scale of steady state performance)
-
Typical Settling Time<2 sec (per SEMI Guideline E17-91)
-
Operating Temperature0 - 50°C
-
Set Point Command Signal0 - 5 VDC from <20 kOhm
-
Wetted Materials316L stainless steel, Viton®, nickel
-
External Leak Integrity<1 x 10-9
-
Leak Integrity Through Closed Valve<1.0% of Full Scale at 40 psig inlet to atmosphere (To assure no flow-through, a separate positive shut-off valve is recommended.)
-
ComplianceCE
-
Maximum Current Required at Start-up±15 VDC (±5%) @ 200 mA
-
Typical Current Required at Steady State±15 VDC (±5%) @ 100 mA
-
Valve StateNormally closed
Resources & Downloads
Drawings & CADs
- 1179C Dimensional Drawing (54.6 kB, PDF)
