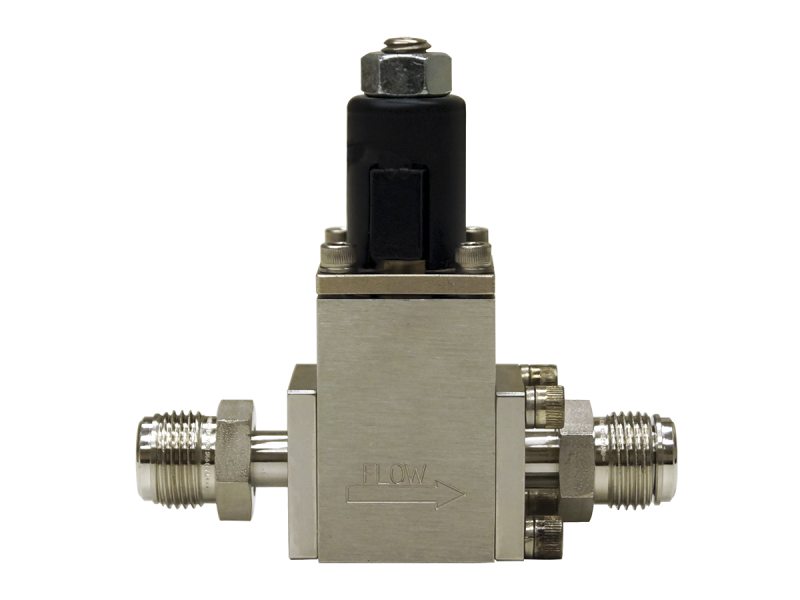

Upstream Flow Control Valve, High Flow, 200 slm, 0.5 in. Tube, Viton
Model: 0154B-200LSV
Upstream Flow Control Valve, High Flow, 200 slm, 0.5 in. Tube, Viton
Model: 0154B-200LSV
Overview
Overview
The 0154B-200LSV High Flow Upstream Pressure Control Valve features a full scale pressure range of 200 slm of nitrogen, a 1/2 inch Swagelok tube compatible fitting and Viton seals. The 154B offers better response time as compared to other high flow control valves. This is possible through the use of a "balanced forces" design that automatically neutralizes the pressure-induced imbalances within the valve.
Technical Specs
- Full Scale Flow Range200 slm
- Minimum Controllable Flow0.1% of Full Scale
- Closed Conductance Leakage<0.1% of Full Scale
- Exposed Materials316 stainless steel, Nickel, Viton
- Seal MaterialViton
- Fitting Type0.5 in. Swagelok
- Operating Temperature-10 - 60°C
