Specifications

  • Type

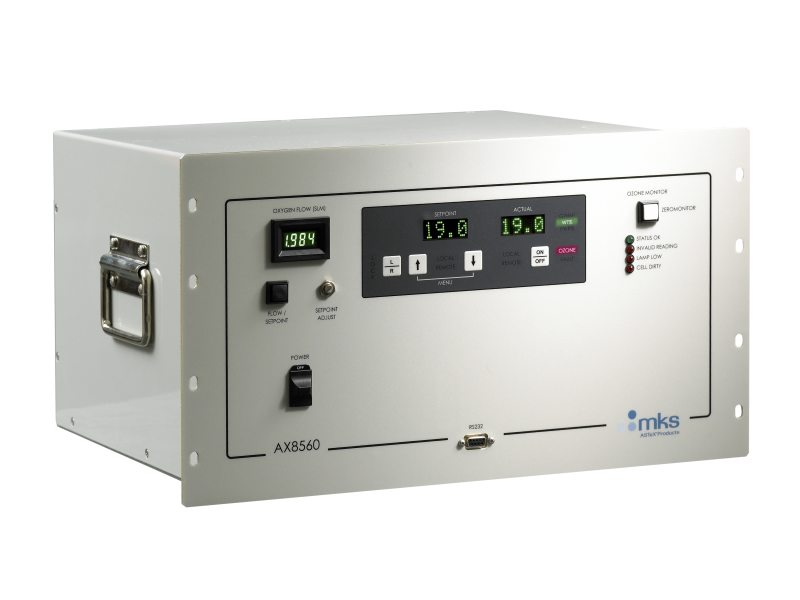

    Ozone Gas Subsystem
  • Ozone Output
    26 - 180 g/hr
  • Flow Rate
    0.5 - 5 slm
  • Feed Gas
    17 - 23°C (63 - 73°F)
  • Operating Temperature
    20 - 40°C (68 - 104°F)
  • Nominal Cell Pressure (Delivery)
    Oxygen: Grade 6 or better O2, Nitrogen: 20 - 100 ppm grade 5 or better N2
  • Control Interface
    Front Panel Control and Remote Operation
  • Cooling Water Temperature Required
    17° - 23°C (63° - 73°F)
  • Cooling Water Filtration Required
    100 microns
  • Cooling Water Quality Required
    Resistivity ≥50 KΩ/cm
  • Cooling Water Minimum Flow Required
    0.95 - 6.65 lpm minimum @ 20°C, Gpm 0.25 - 1.75 gpm minimum @ 20°C (configuration dependent)
  • Voltage Requirements
    208 VAC (± 10%), 3Ø
  • Current Requirements
    Nominal Current 5A - 12A max (configuration dependent)
  • Frequency
    50/60 Hz
  • Operating Range
    0.7 - 3.1 bargauge (10 - 45 psig)
  • Dimensions
    482 x 429 x 267 mm (19 x 16.89 x 10.5 in.) (width x depth x height)
  • Weight
    40 kg (88 lb) (approximate)
  • Compliance
    CE mark, NRTL tested to UL and CSA standards, Semi F - 47
