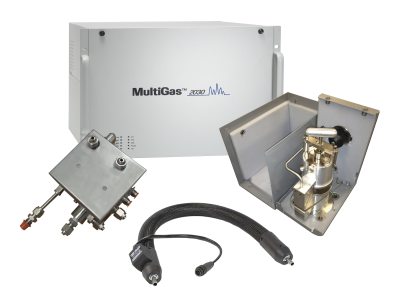

FTIR-based Continuous Emission Monitoring System Integrator Kit
FTIR-based Continuous Emission Monitoring System Integrator Kit
The MGS300 system is a fully turn-key system designed to provide reliable monitoring of emissions from stationary sources, including municipal and industrial waste incinerators, power plants, cement kilns and other fixed location sources of emissions.
Specifications
- Measurement TechniqueHigh resolution FTIR spectrometry
- Spectral Resolution0.5 cm-1
- Infrared SourceSilicon carbide @ 1200°C
- Reference LaserHelium Neon Laser (15798.2 cm-1)
- DetectorThermoelectrically (TE) cooled MCT (Hg Cd Te)
- Spectrometer Purge Flow0.2 L/min of dry N2 or CO2 free clean, dry air with dewpoint below -70°C
- Optics Purge Flow0.2 L/min of dry N2 or CO2 free clean, dry air with dewpoint below -70°C
- Enclosure19-inch rack mount chasis
- Dimensions17.5 in. W x 12.5 in. H x 25.5 in. D
- Power Requirements230 VAC/50Hz or 115 VAC/60Hz
- Weight50 Kg (110 lbs)
- Gas Cell Pathlength and VolumePath Length: 5.11 m
- Fittings1/4 inches Swagelok®
- MirrorsMgF2 coated mirrors
- WindowsBaF2
- O-ringsViton®
- Operating Temperature5° to 40°C
- ComplianceCE
