DA03A 1-1000 Torr Heated (150 or 160°C) Baratron® EtherCAT® Capacitance Manometers
DA03A 1-1000 Torr Heated (150 or 160°C) Baratron® EtherCAT® Capacitance Manometers

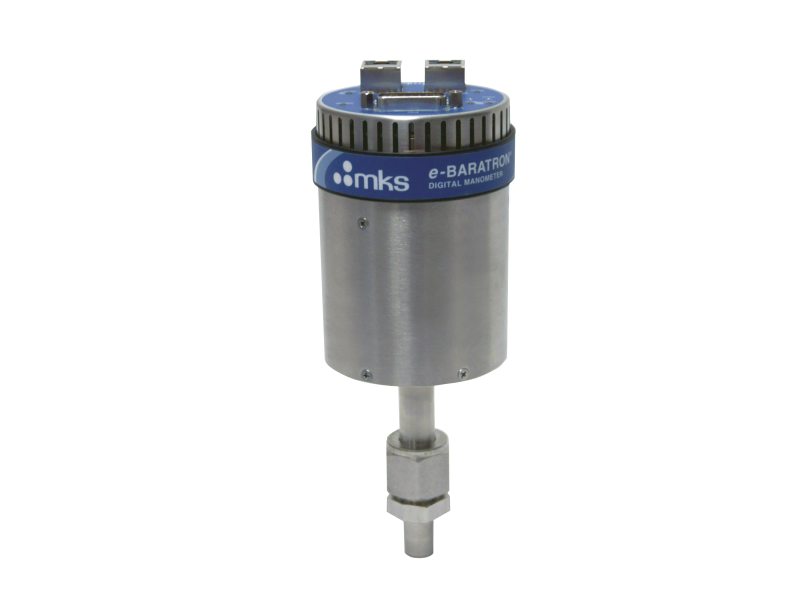

The DA03A Baratron® Capacitance Manometer operates at sensor temperatures up to 160°C. The high temperature operation minimizes the deposition of process byproducts within the sensor. High temperature operation combined with a large sensor reduces sensor process contamination effects resulting in increased sensitivity and zero process related drift.
Specifications
- TypePressure Transducer
- Sensor TypeCapacitance Manometer
- Measurement TypeAbsolute
- Full Scale Pressure Ranges1, 2, 3, 5, 10, 20, 100, 1000 Torr
- Full Scale Range0.01% of Full Scale
- Sensor TemperatureControlled to 150°C or 160°C
- Accuracy0.25% of Reading
- Communication ProtocolEtherCAT®
- Analog Output0 to 10 VDC into >10 ohm load
- Analog Connector15-pin D-subminiture
- Trip RelaysTwo internally mounted process pressure trip relays independently adjustable from 0.5% to 100% of full scale range
- Zero Temperature Coefficient150°C Versions: 0.004% FS/°C (0.008% Full Scale/°C for 1 Torr range)
160°C Versions: 0.008% FS/°C (0.016% Full Scale/°C for 1 Torr range) - Span Temperature Coefficient0.02% Reading/°C
- Response Time50 msec
- Warm-up Time4 hours
- Internal Volume6.3 cc
- Ambient Operating Temperature15° to 50°C
- Overpressure Limit45 psia
- Materials Exposed to Process GasesInconel® and Incoloy® nickel alloys
- Power Requirements+24 VDC or ±15 VDC, 1 amp at start up
- Ambient Airflow Requirements50 ft/min for ambient temperatures of 45-50°C
- ComplianceCE compliant to EMC Directive 2014/30/EU
Fully compliant to RoHS Directive 2011-65-EU
