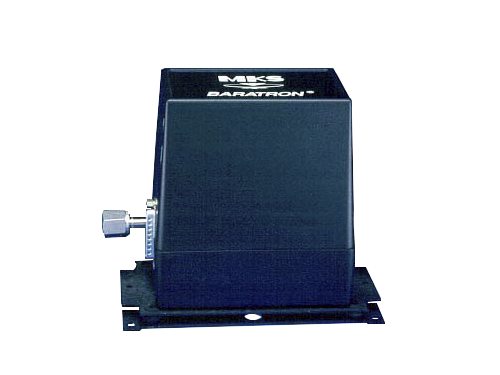

Specifications

  • Sensor Type
    Absolute, Single-end
  • Sensor Temperature
    Controlled to 45°C
  • Full Scale Pressure Ranges
    0.1, 1, 10, 100, 1000, 5000, 10,000, 15,000, 20,000, 25,000 Torr
  • Fitting Type
    Swagelok® 4 VCR®-F or NW 16 KF
  • Output Signal
    0 to 10 VDC into >10K load
  • Electrical Connector
    25-pin Type "D" male
  • Accuracy
    Standard: 0.12% of Reading
    Optional: 0.05% or 0.08% of Reading
  • Resolution
    1 x 10-6 of Full Scale
  • Zero Temperature Coefficient
    15 ppm
  • Span Temperature Coefficient
    100 ppm
  • Operating Temperature
    15° to 40°C
  • Materials Exposed to Process Gases
    Inconel®, 304 & 316 Stainless Steel
  • Volume
    3.5 cc, 14 cc
  • Warm-up Time
    4 hours
  • Time Response
    40 msec
  • Power Requirements
    ±15 or 24-30 VDC @ 700 mA on turn-on,450 mA after warm-up
  • Overpressure Limit
    125% of F.S. or 35 psia whichever is larger
  • Range Multiplier
    x1 or x0.1 ranges selectable via TTL low or pin grounding
  • Remote Zero Adjust
    Zero adjust initiated via TTL low or pin grounding adjustment range: 2% of Full Scale
  • Compliance
    Compliant to EMC Directive 2014/30/EU when used with an overall metal braided shielded cable properly grounded at both ends
